Product overview
Hat type strainers
Application:
Start-up / temporary / permanent operation
Installation:
Clamped between flanges
Filtration:
0.010 mm - 10.0 mm
Benefits:
Inexpensive, short delivery time
ratio
free screen area / free tube cross-section:
A SF:
1.5 (150%)

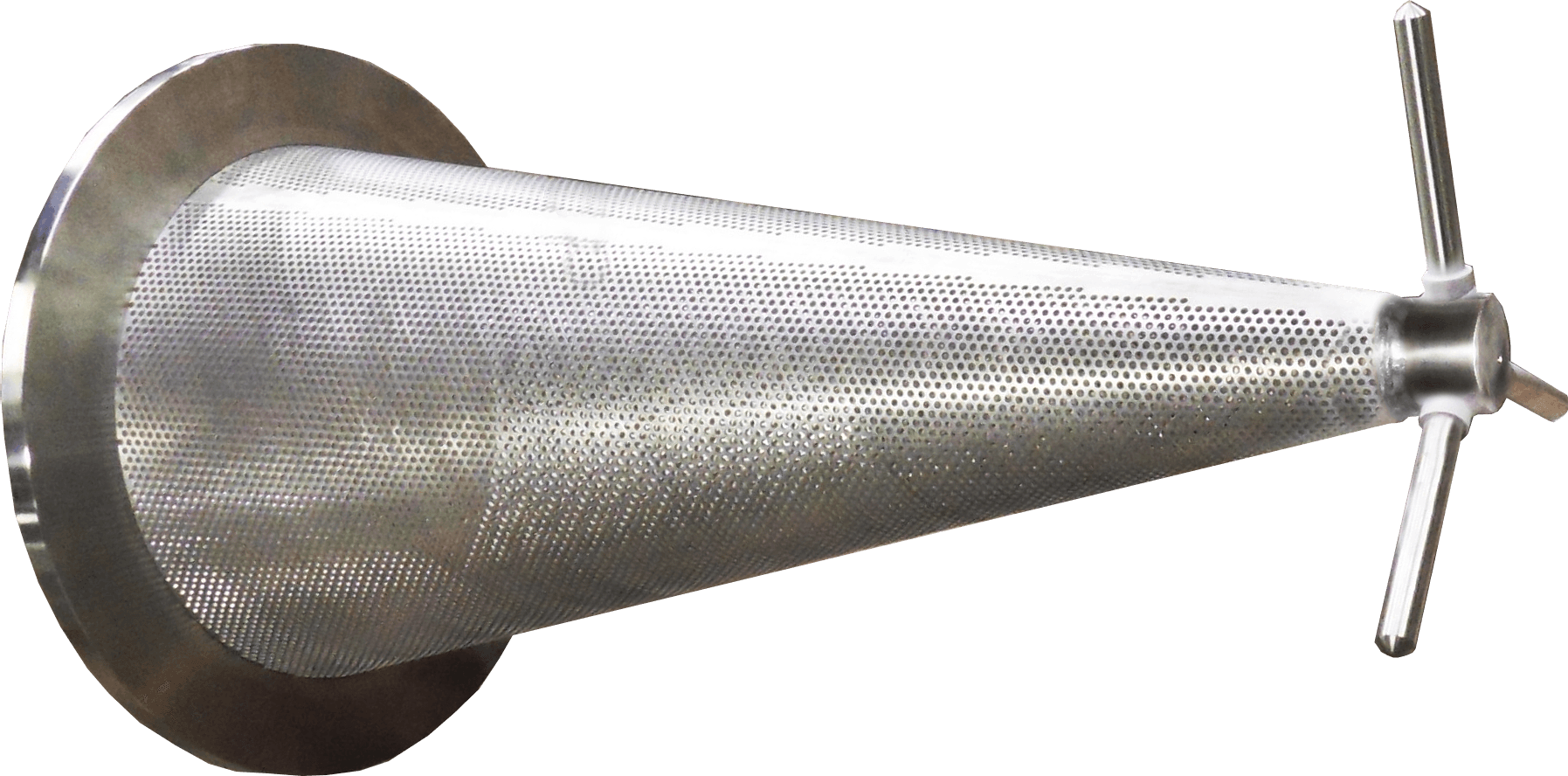

Conical strainers
Application:
Start-up / temporary / permanent operation
Installation:
Clamped between flanges
Filtration:
0.010 mm - 20.0 mm
Benefits:
Inexpensive, short delivery time, high burst strength
ratio
free screen area / free tube cross-section:
A SF:
1.5 (150%) - 3.0 (300%)

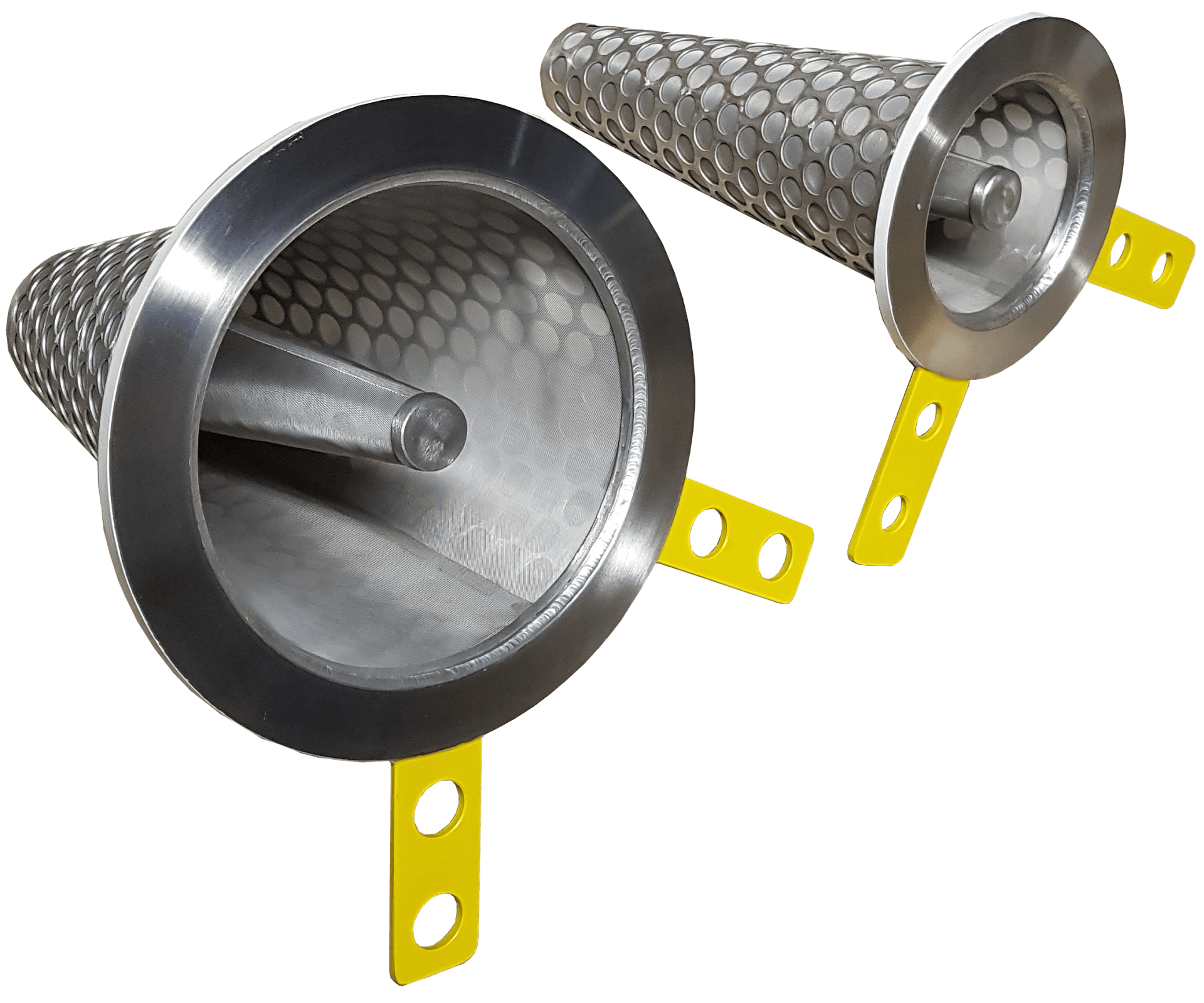

Double cone strainers
Application:
Start-up / temporary / permanent operation
Installation:
Clamped between flanges
Filtration:
0.010 mm - 20.0 mm
Benefits:
Large filter area at short overall length
ratio
free screen area / free tube cross-section:
A SF:
2.0 (200%) - 4.0 (400%)

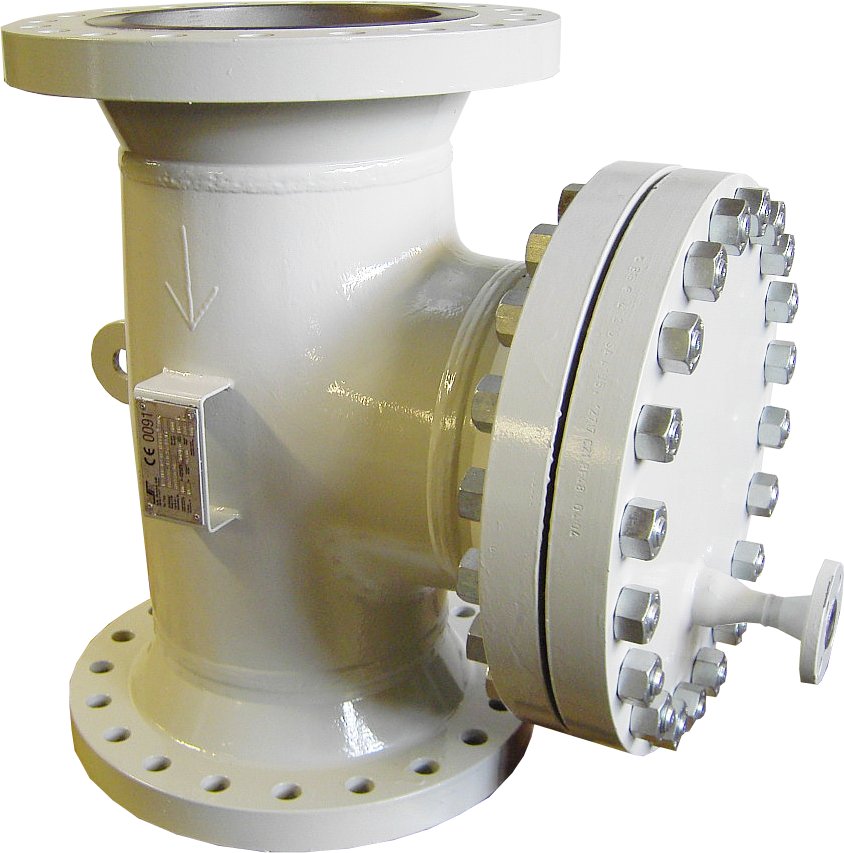

T-Strainers
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.300 mm - 20.0 mm
Benefits:
Maintenance-friendly
Ratio
free filter area / pipe cross-section:
A SF:
1.0 (100%) - 1.2 (120%)
Y-Strainers
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.300 mm - 20.0 mm
Benefits:
Maintenance-friendly, rel. high filtration area
Ratio
free filter area / pipe cross-section:
A SF:
1.5 (150%) - 2.0 (200%)
Basket strainers
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.010 mm - 20.0 mm
Benefits:
Maintenance-friendly, very high filtration area
Ratio
free filter area / pipe cross-section:
A SF:
4.0 (400%)
right angled strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.010 mm - 20.0 mm
Benefits:
Maintenance-friendly, exchangeable with a 90 ° branch
Ratio
free filter area / pipe cross-section:
A SF:
2.0 (200%) - 3.0 (300%)
right angled steam strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.010 mm - 20.0 mm
Benefits:
Maintenance-friendly, exchangeable with a 90 ° branch
Ratio
free filter area / pipe cross-section:
A SF:
5.0 (500%)

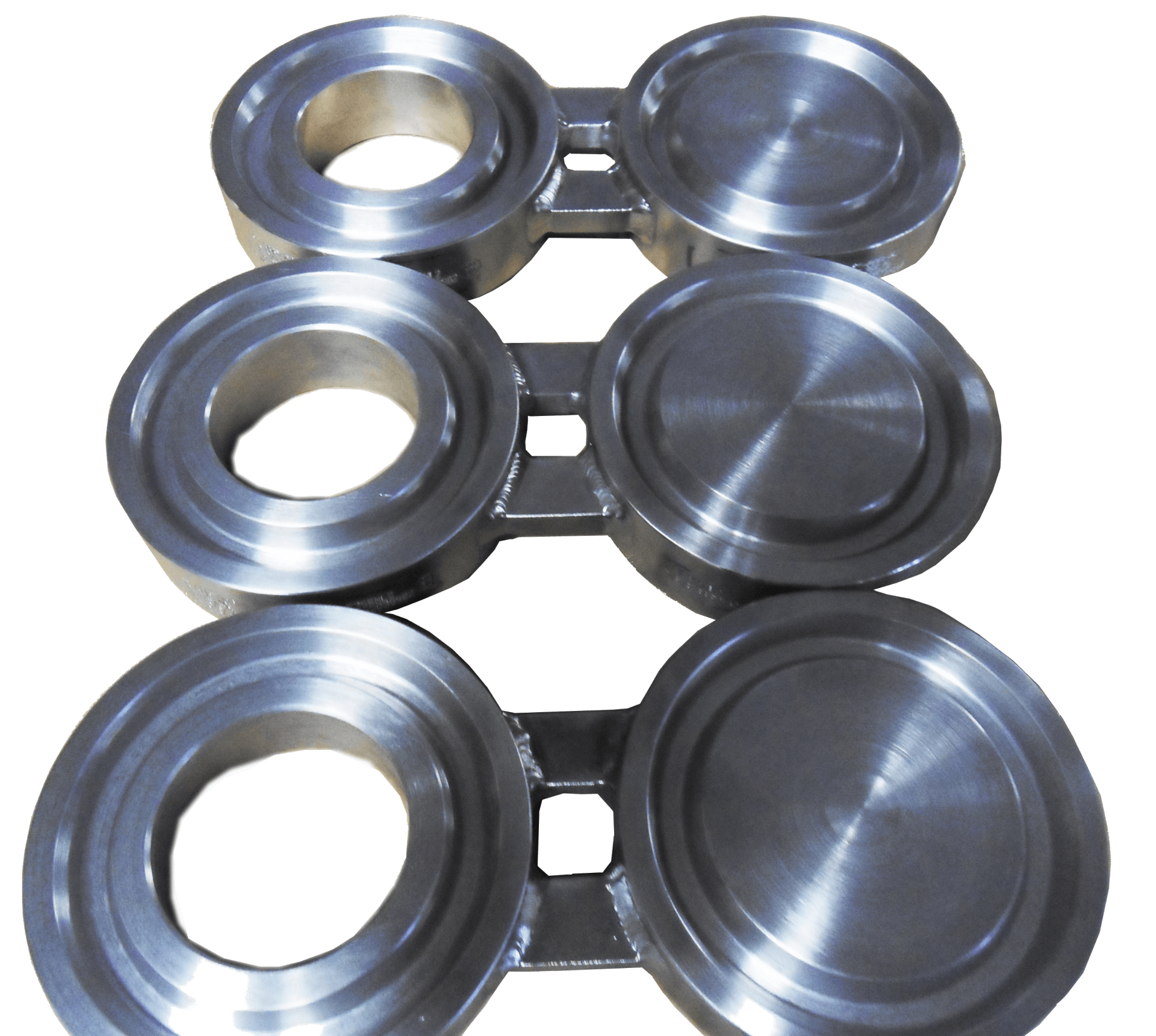

Spectacle blanks / blinds / orifice plates
Application:
Shut off pipe sections for pressure testing
Installation:
Clamped between flanges
