KOSSIK
Filtertechnik GmbH
Product overview

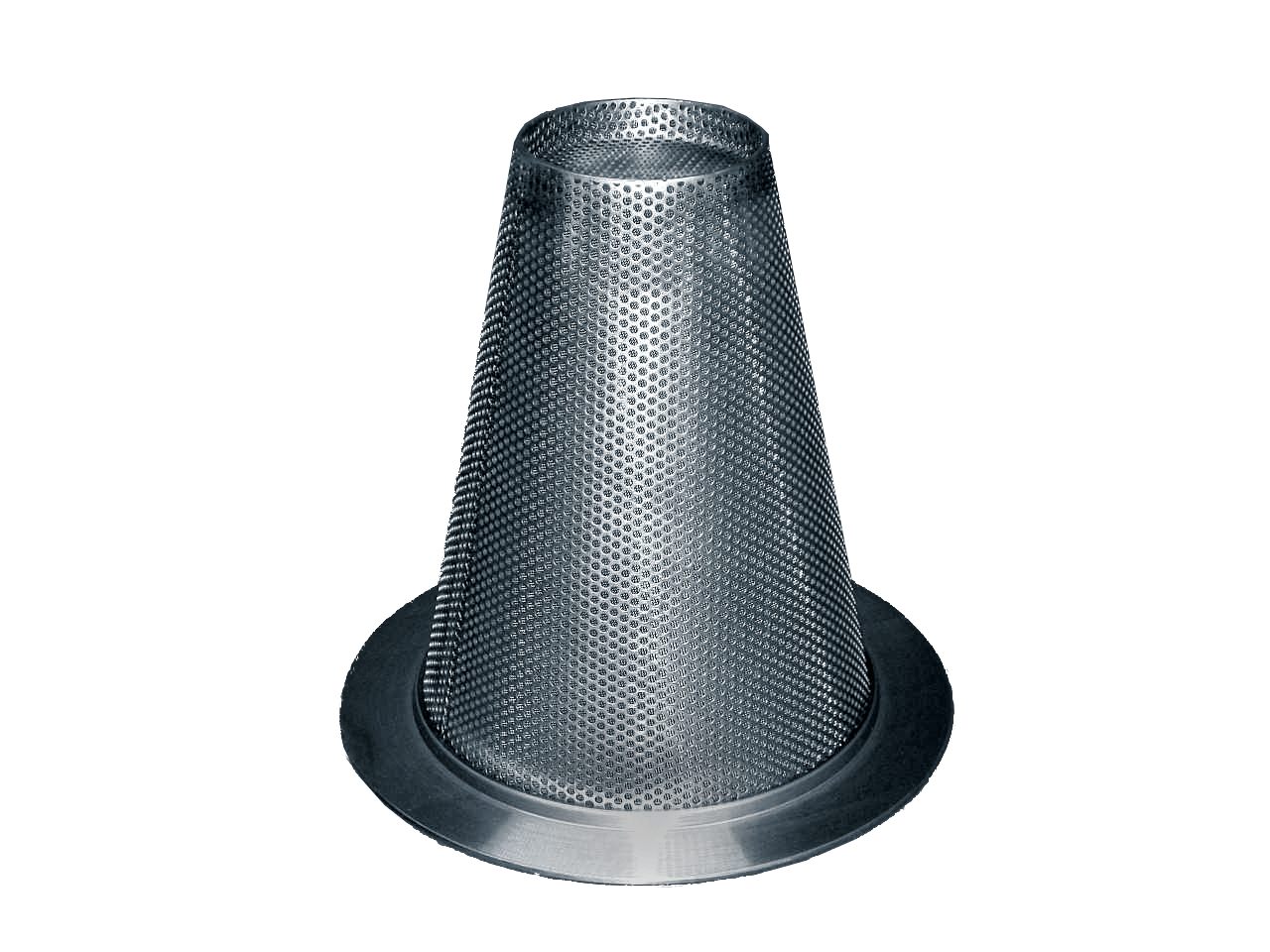

Hat type strainer
Application:
Start-up / temporary / permanent operation
Installation:
Clamped between flanges
Filtration:
0.010 mm - 10.0 mm
Pros:
Inexpensive, short delivery time
Ratio
free filter area / pipe cross-section:
A SF:
1.5 (150%)

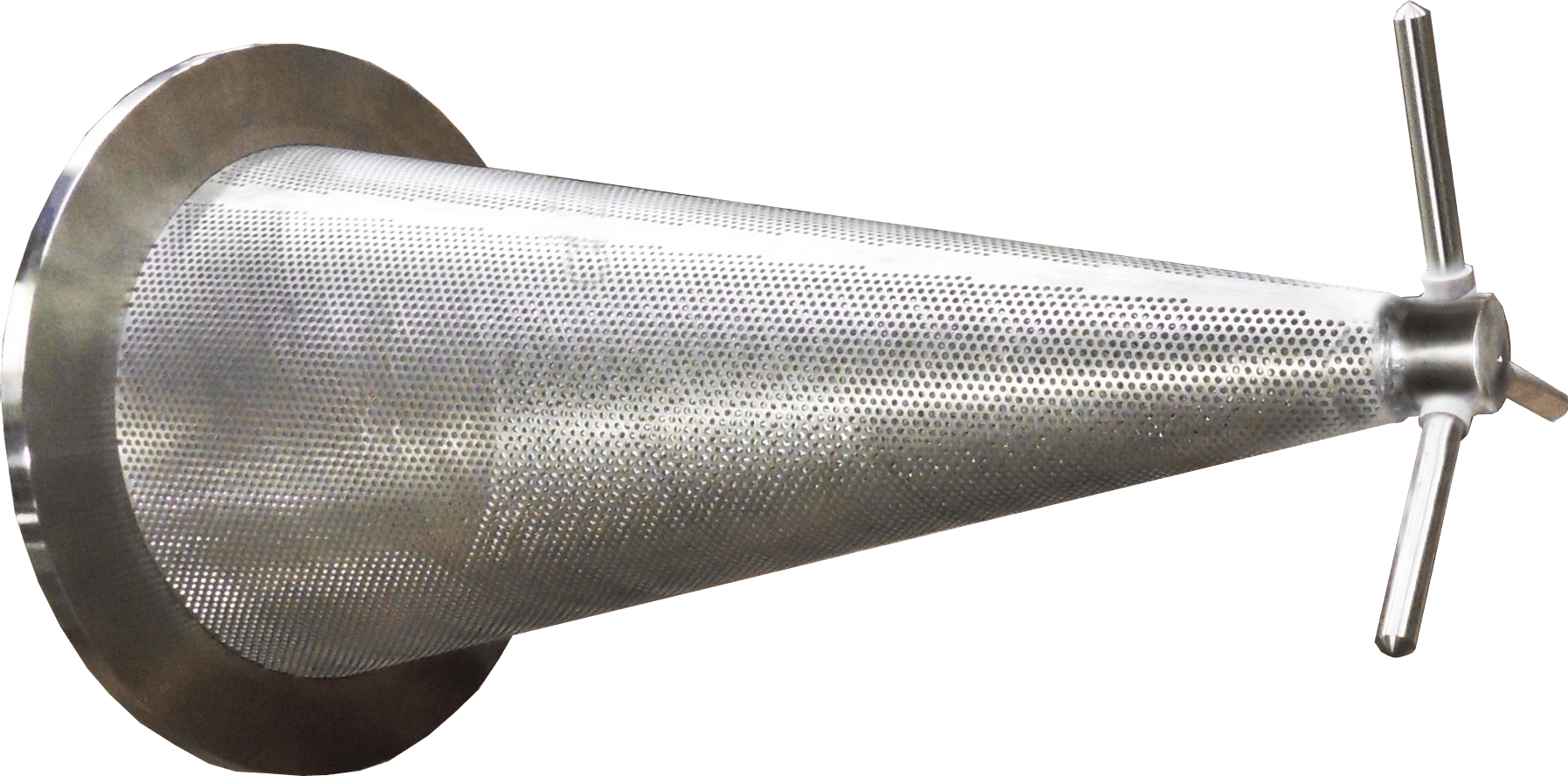

Conical strainer
Application:
Start-up / temporary / permanent operation
Installation:
Clamped between flanges
Filtration:
0.010 mm - 20.0 mm
Pros:
Inexpensive, short delivery time, high burst strength
Ratio
free filter area / pipe cross-section:
A SF:
1.5 (150%) - 3,0 (300%)

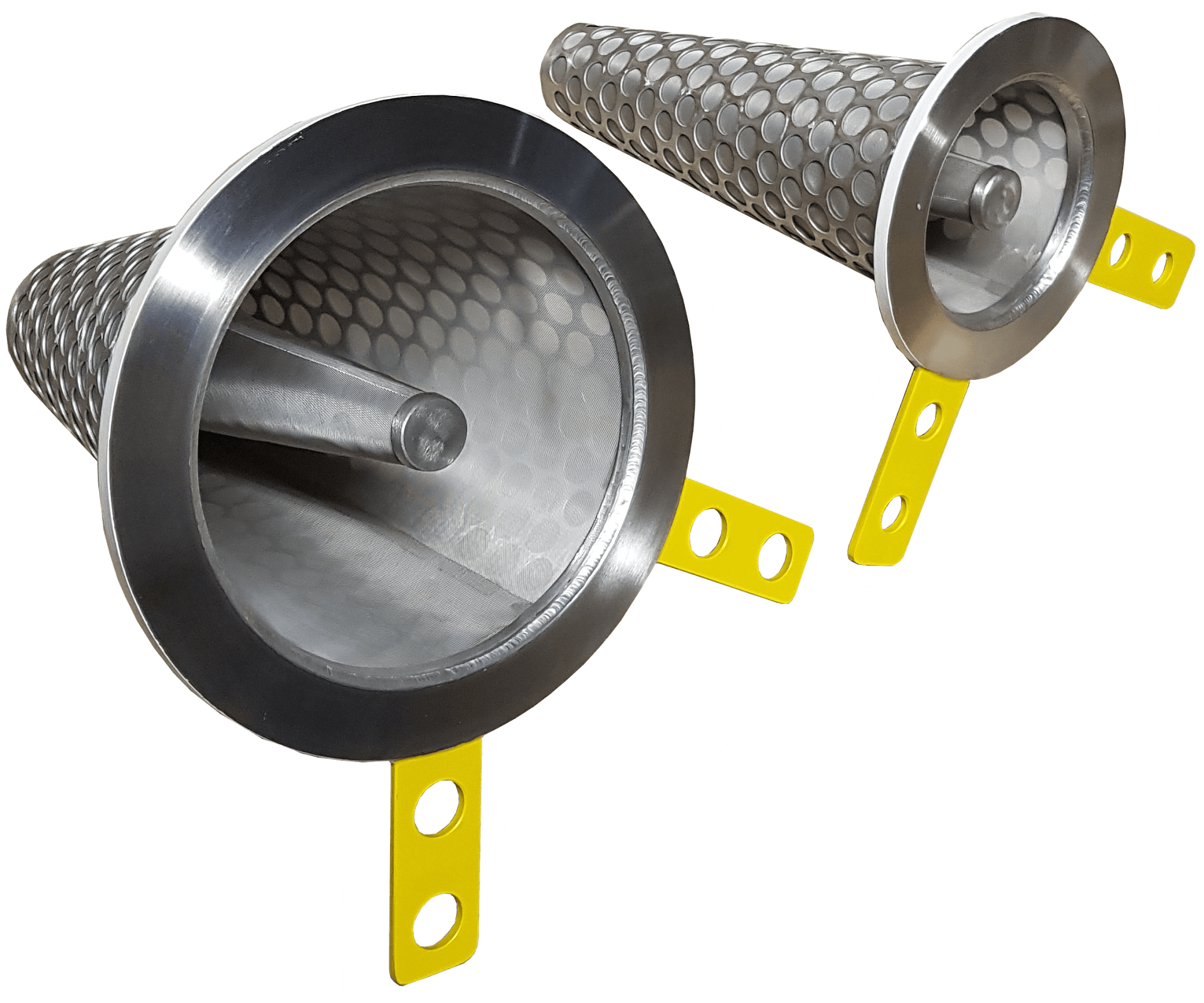

Double cone strainer
Application:
Start-up / temporary / permanent operation
Installation:
Clamped between flanges
Filtration:
0.010 mm - 20.0 mm
Pros:
Large filter area at short overall length
Ratio
free filter area / pipe cross-section:
A SF:
2.0 (200%) - 4,0 (400%)

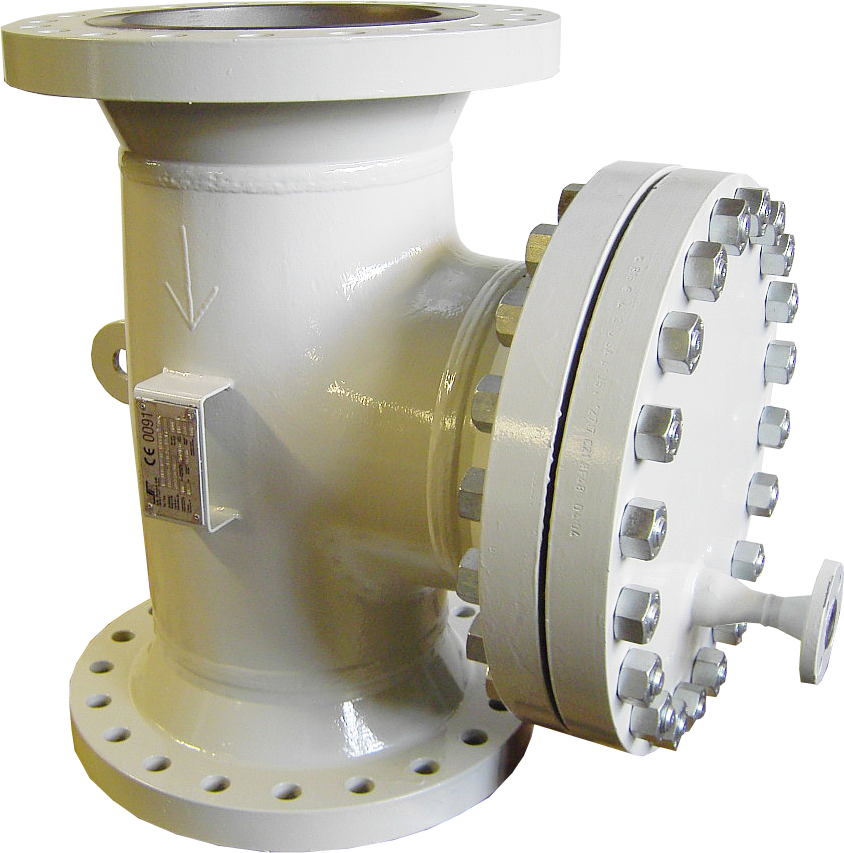

T-Strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.300 mm - 20.0 mm
Pros:
Maintenance-friendly
Ratio
free filter area / pipe cross-section:
A SF:
1,0 (100%) - 1,2 (120%)

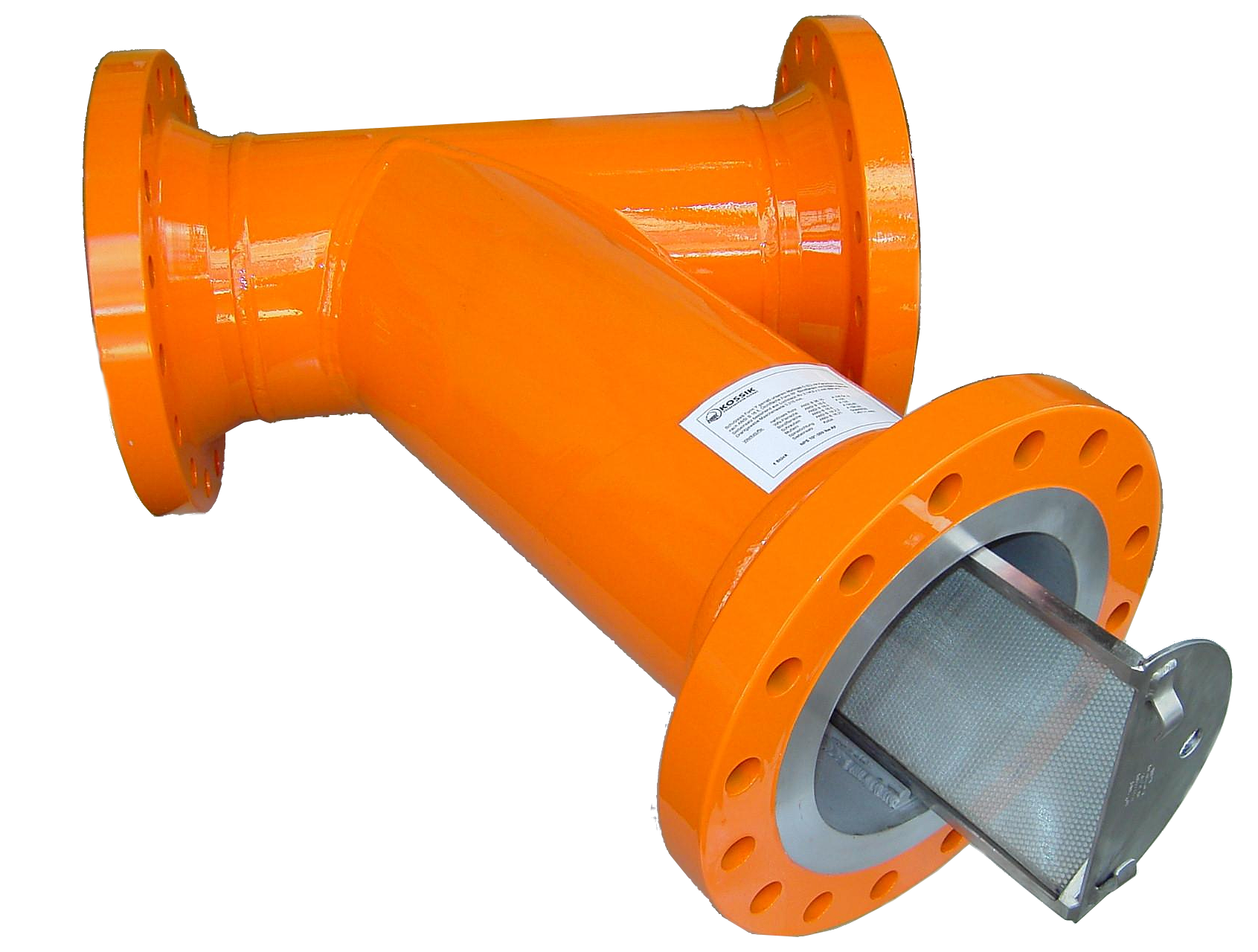

Y-Strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.300 mm - 20.0 mm
Pros:
Maintenance-friendly, rel. high filtration area
Ratio
free filter area / pipe cross-section:
A SF:
1,5 (150%) - 2,0 (200%)

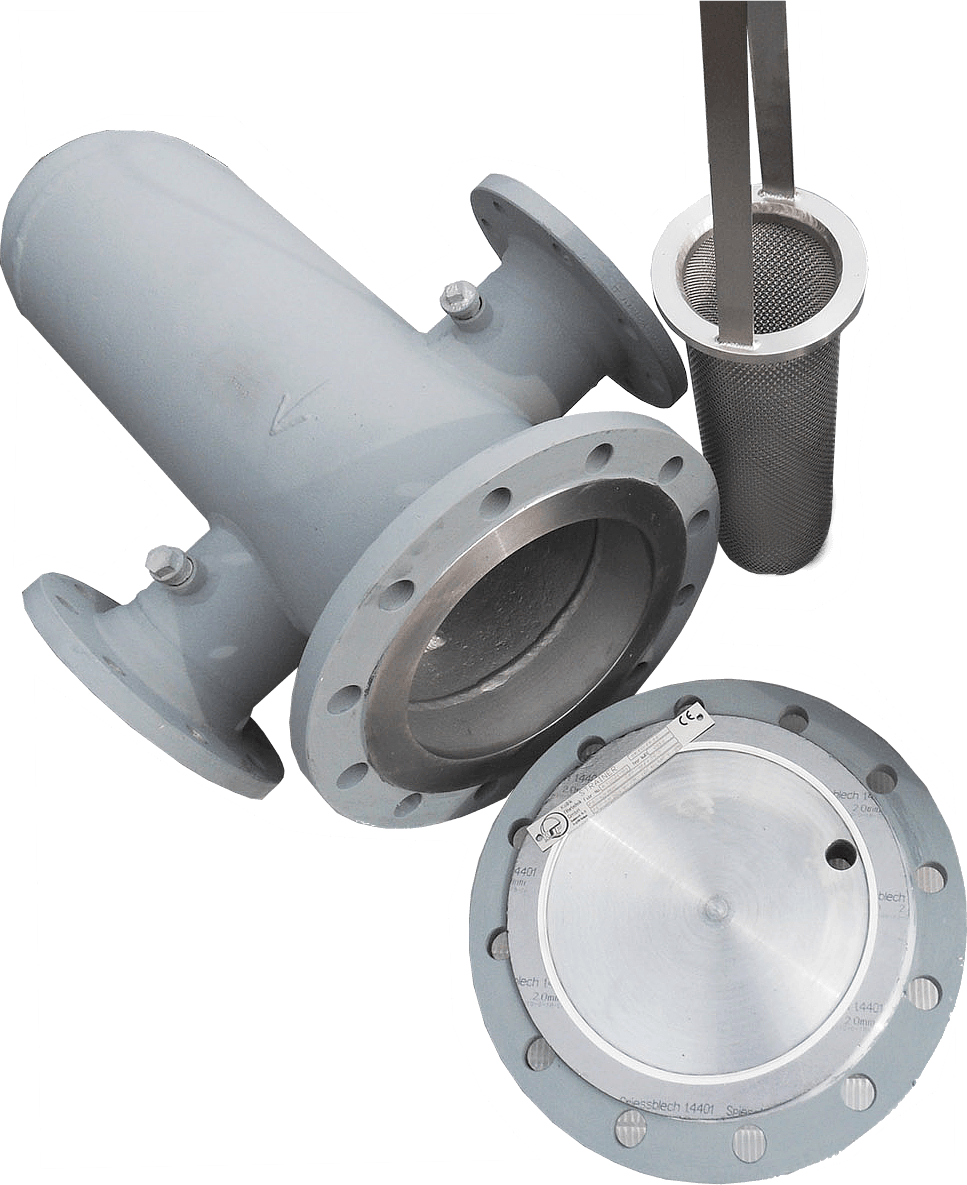

Basket strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.010 mm - 20.0 mm
Pros:
Maintenance-friendly, very high filtration area
Ratio
free filter area / pipe cross-section:
A SF:
4,0 (400%)

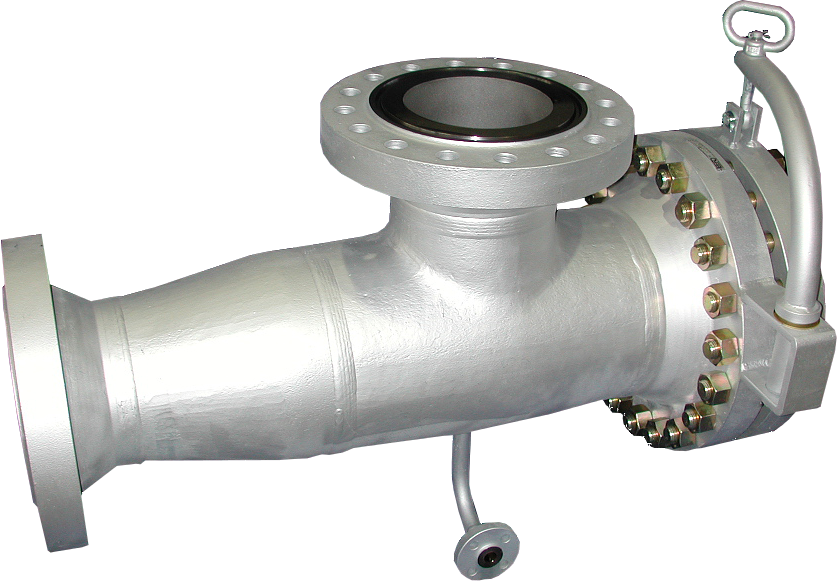

right angled strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.010 mm - 20.0 mm
Pros:
Maintenance-friendly, exchangeable with an elbow 90°
Ratio
free filter area / pipe cross-section:
A SF:
2,0 (200%) - 3,0 (300%)
right angled steam strainer
Application:
Permanent operation
Installation:
Welded or flanged
Filtration:
0.010 mm - 20.0 mm
Pros:
Maintenance-friendly, exchangeable with an elbow 90°
Ratio
free filter area / pipe cross-section:
A SF:
5,0 (500%)

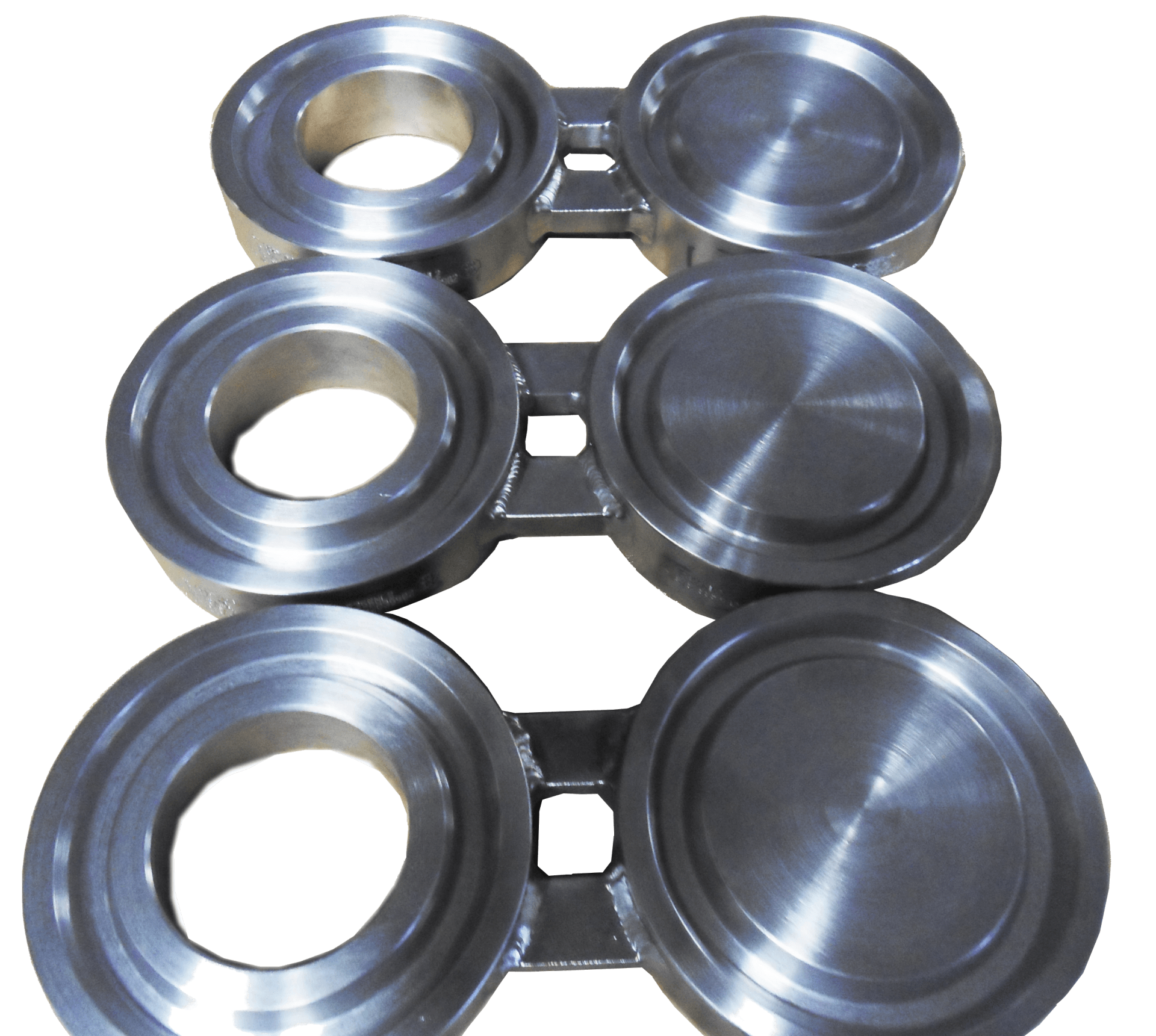

Spectacle blanks
/ blinds / orifice plates
Application:
Shut off pipe sections for pressure testing
Installation:
Clamped between flanges
