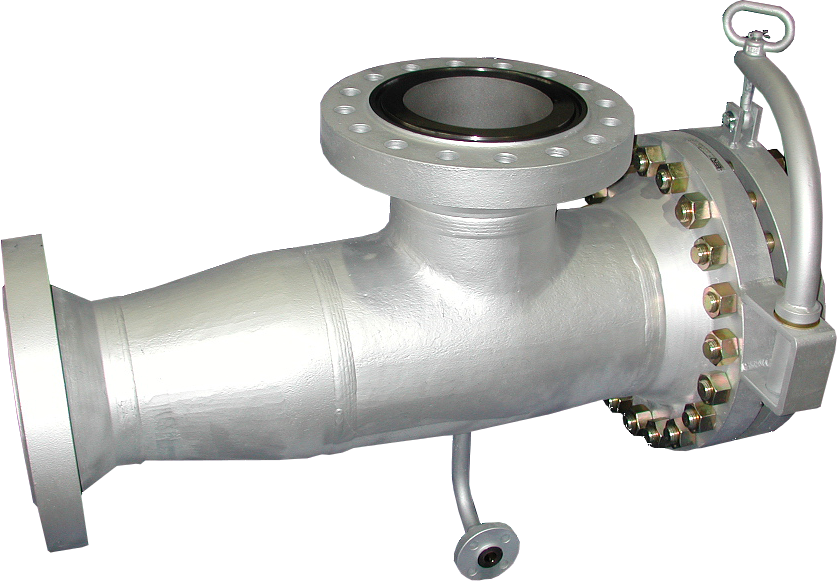

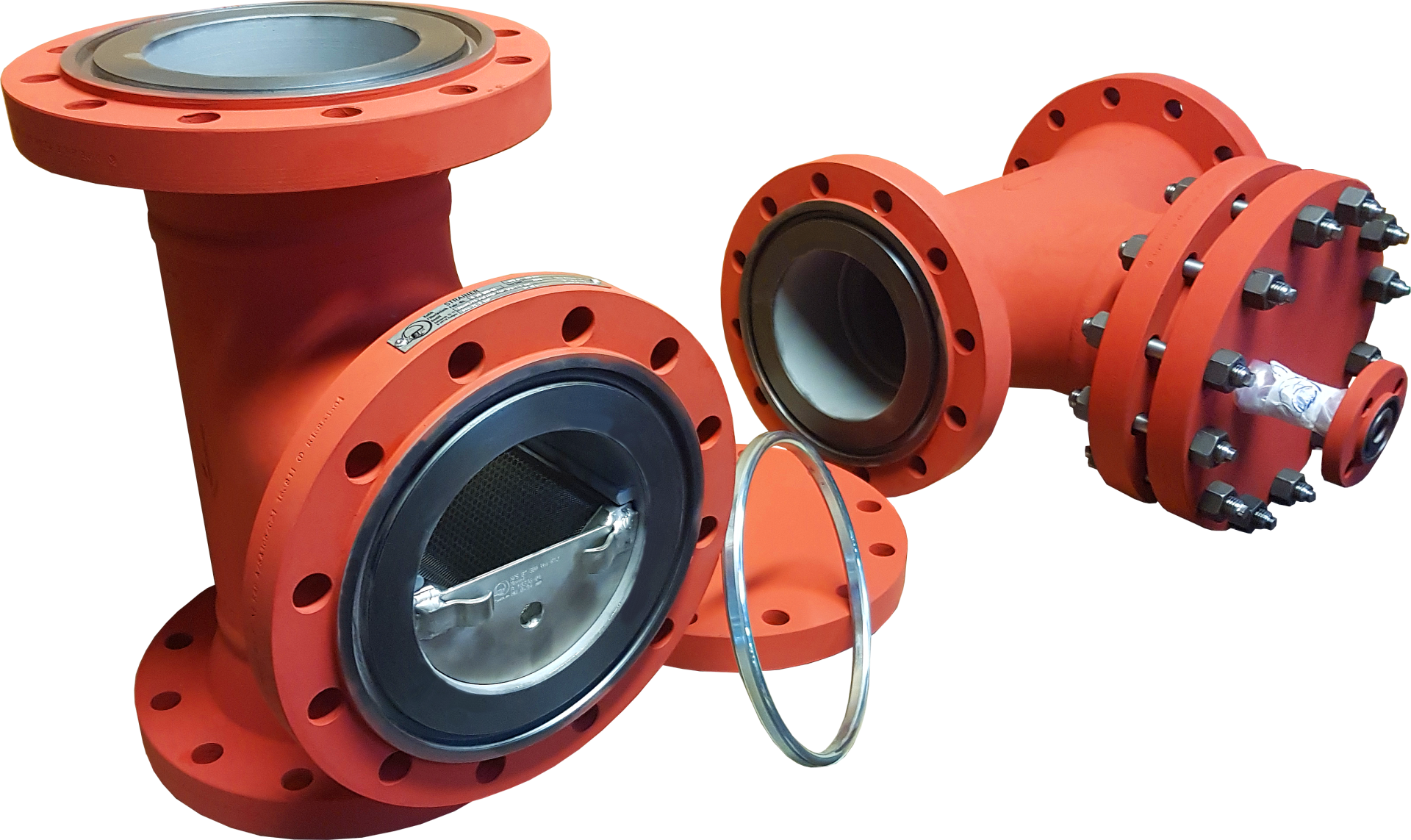

Right angled strainer form T

T G 014/015 series

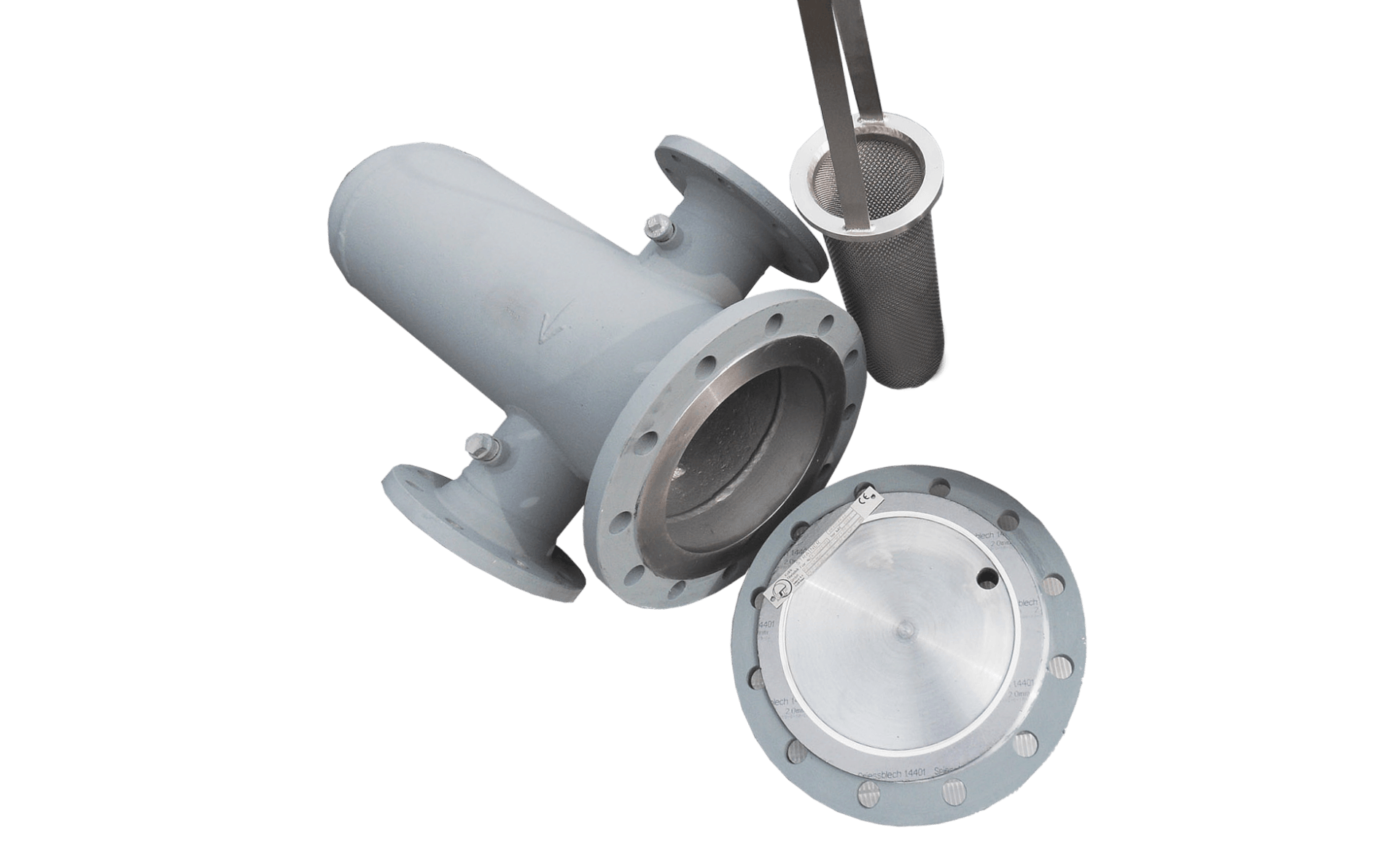

Right angled strainer are suitable for performing the necessary filtration in the 90° elbow of the pipeline. This means that they can be built into the system to save space, without requiring an additional area for filtration. The medium flows into the cylindrical strainer insert provided for this purpose, is filtered through the entire filter surface and continues through the 90° branch into the pipeline below. Thanks to this design, the finest filtrations can be implemented. Right angled strainer can be built with welding ends or with a flange connection. The existing service opening means that cleaning and maintenance work on the strainer insert can be carried out quickly. The service opening (blind flange) closes the housing. The differential pressures on the clean sieve, with 50% contamination, as well as the maximum permissible burst pressure are determined.

The inspection before commissioning by the specialist or by a company-independent notified body (TÜV) is included, as is the assignment of the primary material.
